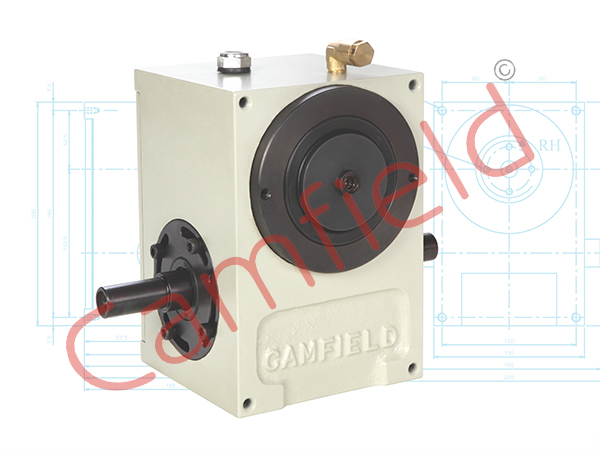

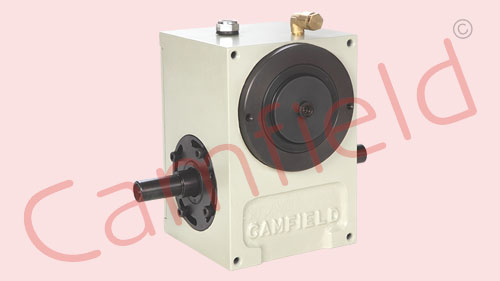

F.D. SERIES CAM INDEXING SYSTEMS/GLOBOIDAL CAM INDEXERS

Right angle Indexers are typically used for continuously running applications with cams designed to match the Indexing and idle times without stopping the motor. These are Versatile units suitable for a wide range of applications.

Features

• Through Hardened and CNC ground steel cam

• Cast Iron Housing for Rigidity and zero vibration

• Shaft and Hollow Output are optional on most models

• Double Dwell Cam for high speed indexers

• Available with Flange Output or Shaft Output on Request

• High Station to Station Accuracy

• Appropriate Oil Bath Lubrication

• Seals Prevent Oil Leakage in any Work Positions

• Can be fitted with Reducer and Drive Through Hole Output Shaft can be provided

• Output Shaft supported by Over-Sized Tapered-Roller bearing

• Rugged Design and High Load Capability

• Range of Indexing/Stop Time as per Request

• Oscillating Motion

• Number of Stops:
• 1 to 36
• Higher number of stops possible
• With Additional Reduction Gear


• Indexes/Minute: <1000


• Indexing Angle:
• 90° to 330°
• Depending on number of stops


• Direction of Rotation:
• Clockwise, Counter Clockwise, Reversing


• Mounting Position:
• Universal Mounting Positions
